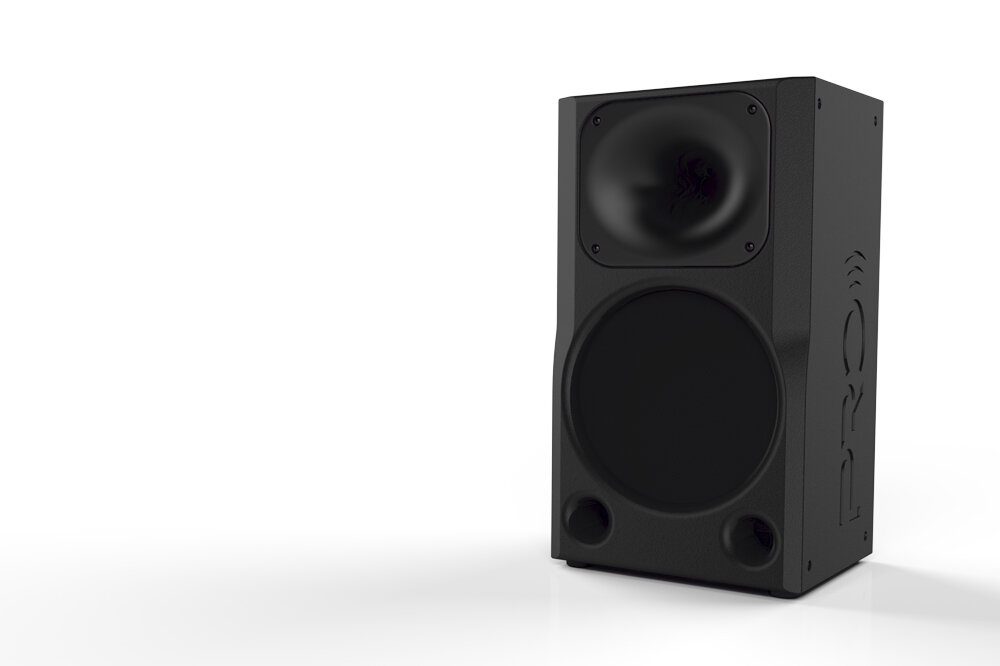

TR Professional Audio Technology S-12sm MULTI-USE LOUDSPEAKER

S-12sm

HIGH OUTPUT 12” MULTI-USE LOUDSPEAKER
SPECIFICATIONS:

• APPLICATION: Bi-amplified medium format multipurpose loudspeaker
• LF SECTION: 12″ professional grade woofer with 4″ voice coil
• HF SECTION: 1.7″ professional-grade compression driver with advanced polymer diaphragmon 80° x 60° elliptical horn
• CROSSOVER: 8th order acoustic via DSP
• POWER HANDLING: 1400W LF / 100W HF
• SENSITIVITY: 93dB LF / 108dB HF
• POWER REQUIREMENTS: Bi-amplification via PRO Amplified Loudspeaker Controller
• WIRING REQUIREMENTS: 4 conductors
• FREQUENCY RANGE: 38Hz – 22kHz, -6dB
• MAXIMUM OUTPUT: 128dB
• NOMINAL IMPEDENCE: 4-ohms LF / 8-ohms HF
• DIMENSIONS: 25″ H x 14″ W x 12″ D
• WEIGHT: 63 lbs.
